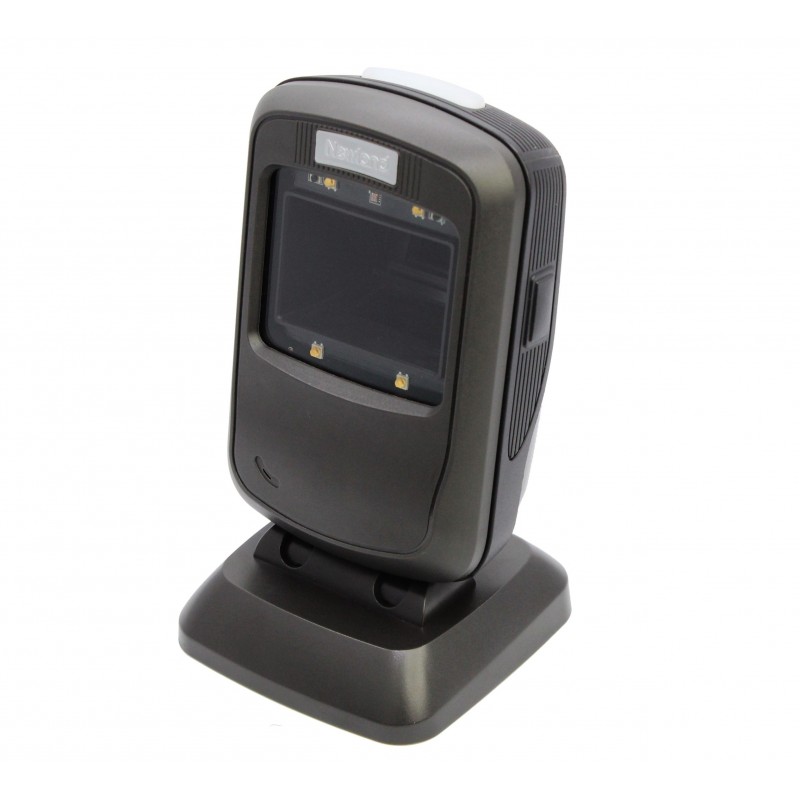

Newland NLS FR-40

Nowe

FR-40 to nowoczesny skaner kodów kreskowych przeznaczony dla wymagających użytkowników. Dwuwymiarowe kody kreskowe zawdzięczają swoje istnienie także nowej technologii skanerów.
Diody elektroluminescencyjne i jednowymiarowe skanery omiatające kod promieniem lasera zostały zastąpione kamerami CCD oraz mikroprocesorami dekodującymi otrzymany obraz.

615 zł  (Brutto)

Zamówienia przyjmujemy telefonicznie oraz przez e-mail
tel: 885-106-668 e-mail: biuro@kasywagi24.pl

Performance Image Sensor 752*480 CMOS
Symbologies 2D          PDF417, QR Code, Data Matrix, Chinese Sensible Code
1D          EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar,
Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5,
Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc.
Resolution ≥5mil
Typical Depth of Field Code 39     40-200mm (20mil)
EAN-13      5-180mm (13mil)
QR Code     10-180mm (20mil)
Motion Tolerance 2.5m/s
Scan Angle Pitch        ±60°@ 0°Roll and 0° Skew
Roll         ±360°@ 0°Pitch and 0° Skew
Skew        ±55°@ 0°Roll and 0° Pitch
Symbol Contrast ≥25%
Interface RS-232, USB, PS/2 (Hardware version 2.1 required)
Physical/
Electric
Dimensions (L×W×H) 83×81×148mm
Weight 292g
Notification Beep, LED indicator
Current Operating   150mA
Standby     120mA
Environmental Operating Temperature -20℃~50℃
Storage Temperature -40℃~70℃
Humidity 5%~95% (non-condensing)
ESD ±14 kV(air discharge),±8 kV(direct discharge)
Drop 1.2m drops to concrete (for six sides, one drop per side)
Sealing IP50
Certifications FCC Part15 Class B,CE EMC Class B
Accessories Cable
USB         Used to connect the scanner to a host device.
RS-232      Equipped with a power connector; used to connect the scanner to a host device.
Power Adapter
Used to provide power for the scanner.
Output: DC5V,1.5A; Input: AC100~240V, 50~60Hz
